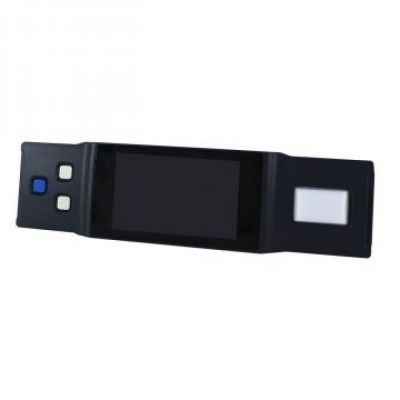

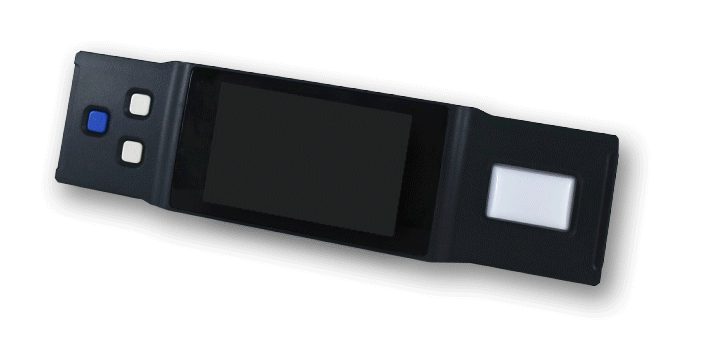

Advanced LCD Pick-to-Light

Advanced LCD
Pick-to-Light(AT70P)

Features

  • 3” TFT LCD Module (240x400 pixel, 262K color) display
  • 6-color illuminated confirmation button
  • Allow to display more plenty picking message to guide users
  • Be able to display 1D and 2D barcode
  • User is able to design their own display template
  • Power requirements: 12V DC/ 200mA
  • Size:  190mm(L) x 48.2mm(W) x 20.5mm(H)
  • Operating temperature: 0°C ~ 40°C
